IP67 4 Inch Waterproof Industrial Rugged PDA Handheld Android PDAs Portable Data Terminal NFC Data Collector for Inventory
SKU: 1005011616498229-US
AVAILABILITY: In stock (8888 items)
Hurry! Only 8888 Left in Stock!
Warrenty. No code needed, just head for checkout!
Free shipping. All orders are dispatched the next business day!
We will beat any price. We back all products with a 14 days guarantee.
SPECIFICATIONS
Battery Included: No
Brand Name: NONE
Certification: NONE
High-concerned chemical: None
Interface Type: USB
Optical Resolution: 300*300
Origin: Mainland China
Scan Speed: 100 scans/second
Scanning Light Source: Natural Light

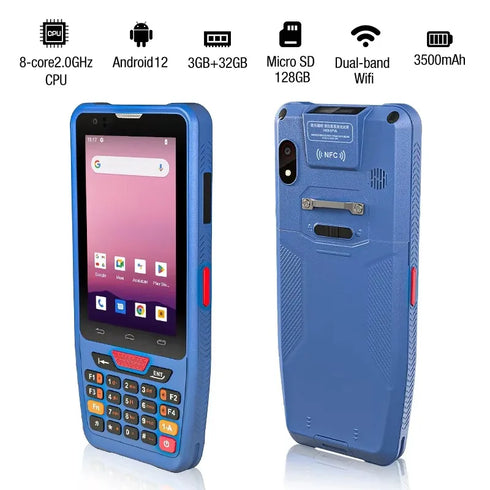

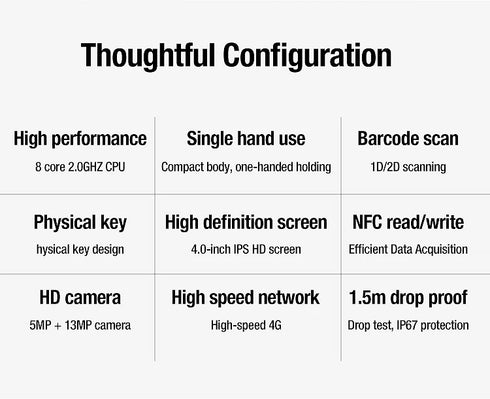

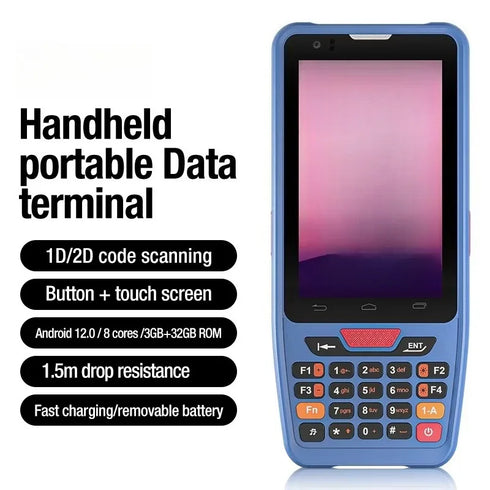

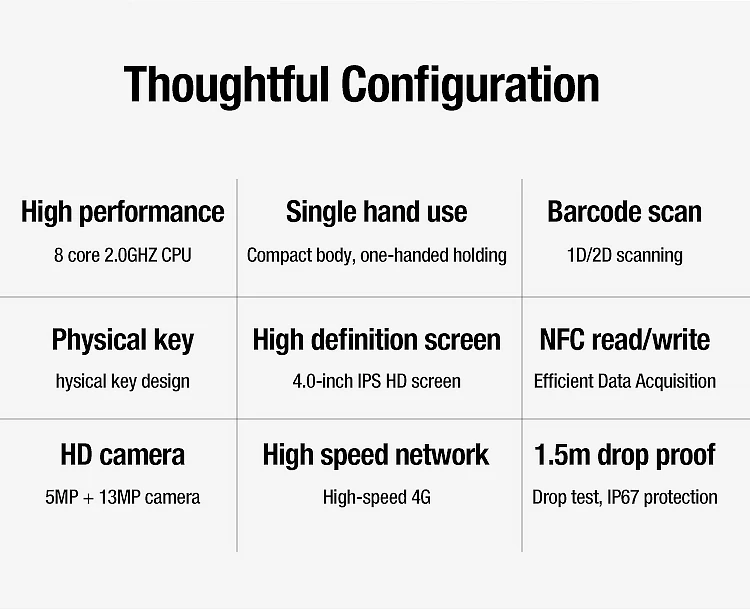

Product features of PDA-406:
• 8-core 2.0GHz CPU • Android 12.0 • 3GB RAM+32GB ROM • 4.0-inch large screen
• Front: AF 5.0 MP Back: AF 13.0 MP • NFC read and write • Full physical keyboard design
• 3500mAh removable battery • 1D/2D code scanning • IP65 protection level
|
Type
|
|
Detail
|
|
Describe
|
|
|
||||||
|
Product form
|
|
name
|
|
Data collection handheld smart terminal
|
|
|
||||||
|
|
|
size
|
|
166* 75*20mm
|
|
|
||||||
|
|
|
weight
|
|
240g(battery included)
|
|
|
||||||
|
|
|
color
|
|
black
|
|
|
||||||
|
IPS
|
|
screen size
|
|
4.0-inch IPS screen
|
|
|
||||||
|
|
|
Screen Resolution
|
|
800x480 pixs
|
|
|
||||||
|
TP
|
|
touchscreen
|
|
Support multi-touch
|
|
|
||||||
|

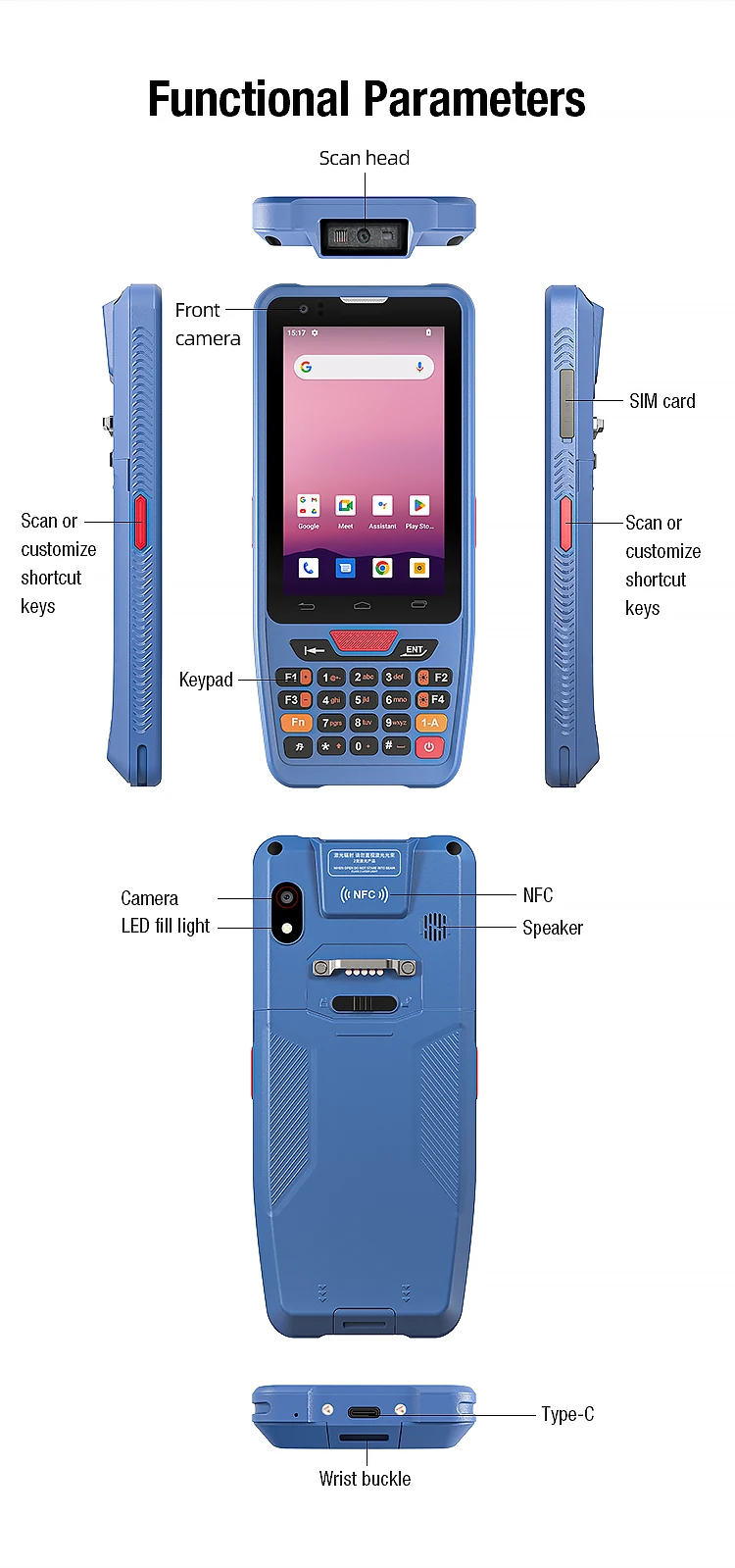

button
|
|
internal
|
|
Front keys*19, left and right scan keys*2
|
|
|
||||||
|

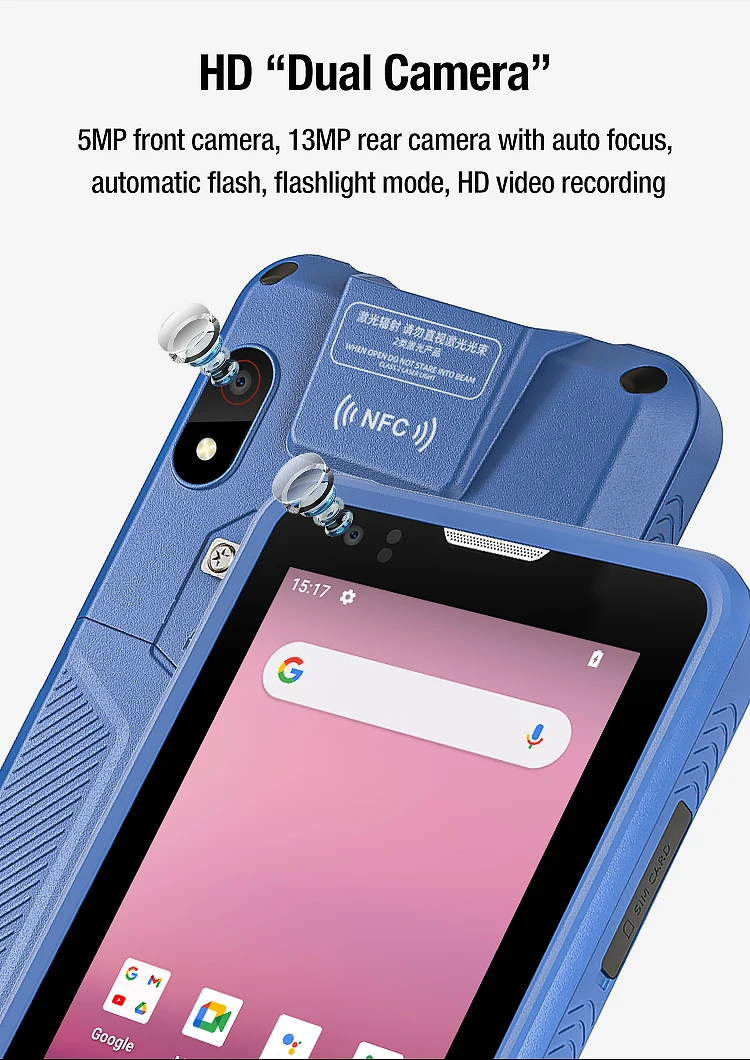

Camera
|
|
Front
|
|
Front: AF 5.0 MP
|
|
|
||||||
|
|
|
Back
|
|
SONY IMX135 13.0MP, autofocus with flash
|
|
|
||||||
|
speaker
|
|
internal
|
|
support
|
|
|
||||||
|
Microphone
|
|
internal
|
|
support
|
|
|
||||||
|

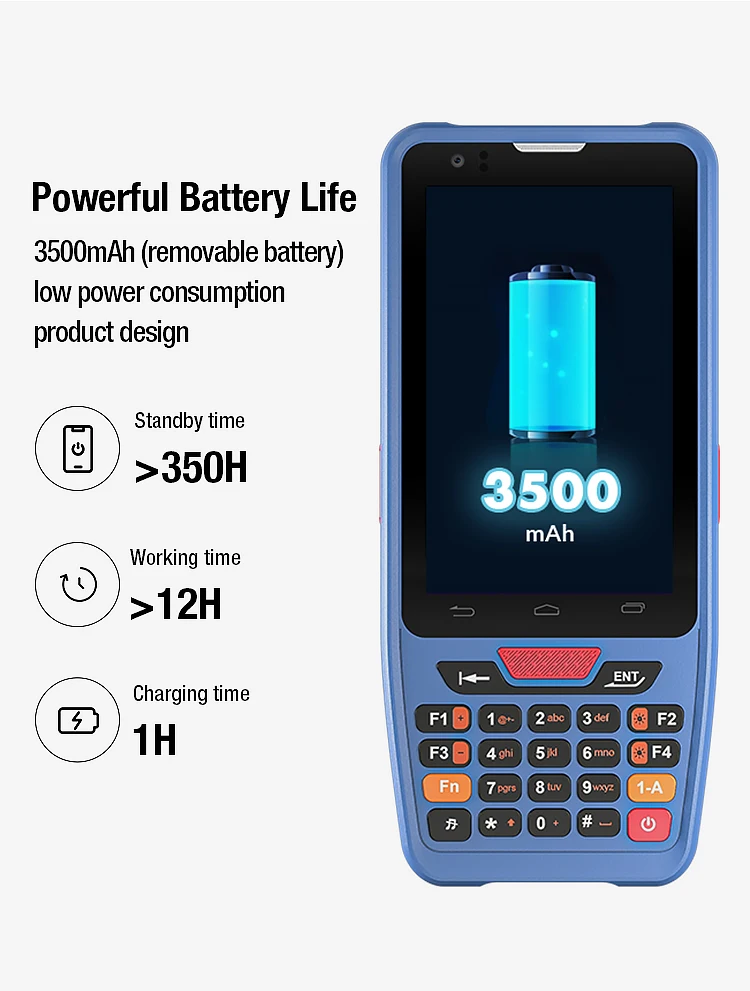

Battery
|
|
category
|
|
Built-in polymer lithium-ion battery
|
|
|
||||||
|
|
|
capacity
|
|
5v 3500mAh
|
|
|
||||||
|
|
|
Battery life
|
|
Working time>12h Charging time: 1h Standby time>350h
|
|
|
||||||
|
System Hardware Configuration
|
|
|
|
|
|
|
||||||
|
Type
|
|
Detail
|
|
Describe
|
|
|
||||||
|
system
|
|
Version
|
|
Android 12.0
|
|
|
||||||
|
CPU
|
|
Type
|
|
8-core 64-bit 2.0GHz CPU
|
|
|
||||||
|
|
|
Speed
|
|
2.0GHZ
|
|
|
||||||
|
Memory
|
|
Memory
|
|
3GB
|
|
|
||||||
|
storage
|
|
storage
|
|
32GB
|
|
|
||||||
|
Charging instructions
|
|
internal
|
|
Charging indicator light: The red light flashes when the battery is low, the red light stays on when charging, and the green light
stays on when the battery is fully charged. |
|
|
||||||
|
Gyro
|
|
internal
|
|
Gyroscope *1
|
|
|
||||||
|
Gravity sensor
|
|
internal
|
|
Gravity sensor *1
|
|
|
||||||
|
Vibration motor
|
|
internal
|
|
Vibration motor *1
|
|
|
||||||
|

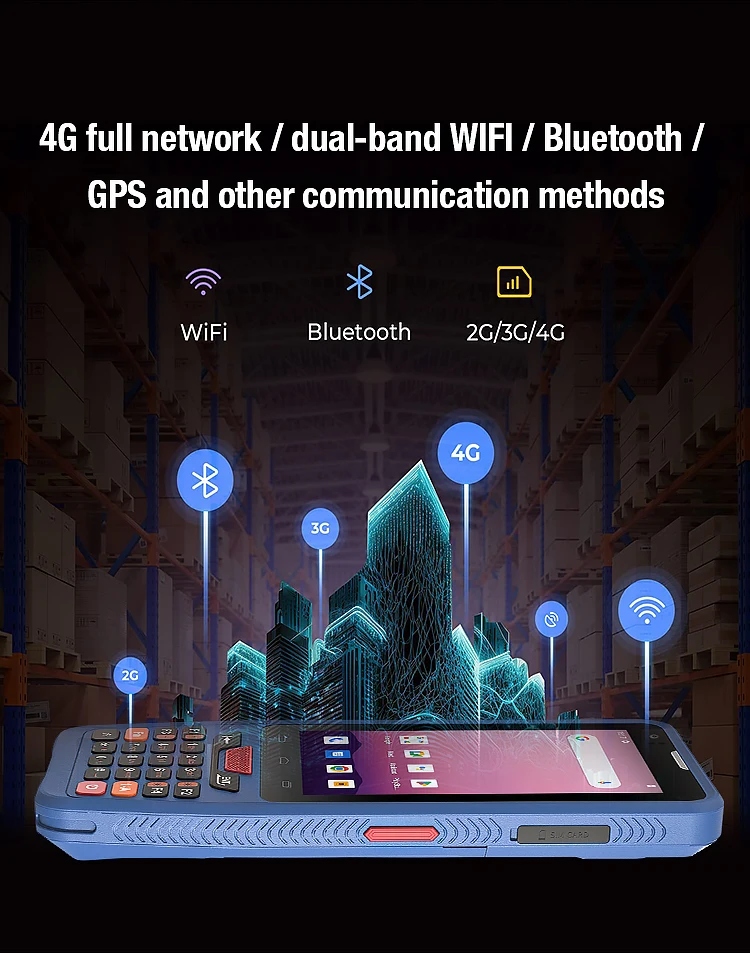

Internet connection
|
|
|
|
|
|
|
||||||
|
Type
|
|
Detail
|
|
Describe
|
|
|
||||||
|
WLAN
|
|
internal
|
|
Wi-Fi 802. 11a/b/g/n/r/ac (2. 4G+5GDual-band Wi-Fi)
|
|
|
||||||
|
Bluetooth
|
|
internal
|
|
Bluetooth 5. 0
|
|
|
||||||
|
WWAN
|
|
internal
|
|
2G (GSM) : 2G :B2/B3/B5/B8
3G (WCDMA) :B1 /B5/B8 4G(FDD-LTE):B1/B3/B5/B7/B8/B20 4G (TDD-LTE) :B34/B38/B39 /B40/B41 |
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
GNSS
|
|
internal
|
|
GPS/AGPS/Beidou/Galileo/GL ONASS/QZSS
|
|
|
||||||
|
Data collection
|
|
|
|
|
|
|
||||||
|
Type
|
|
Detail
|
|
Describe
|
|
|
||||||
|
NFC
|
|
Chip model
NXP PN557 |
|
13.56MH supports I S01 4443A/1 4443B/15693,
Card reading distance: 4cm |
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|

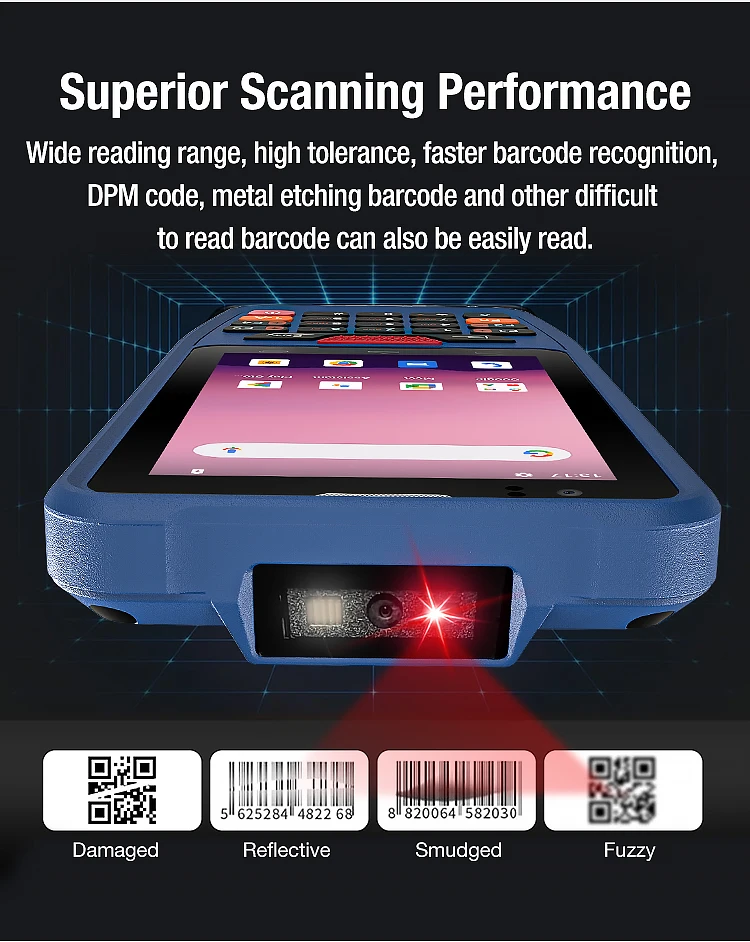

1D code
|
|
1D laser scanning
|
|
Support UPC/EAN, Code129, code39, code11, cross 25 code,
codabar, MSI, etc. |
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|

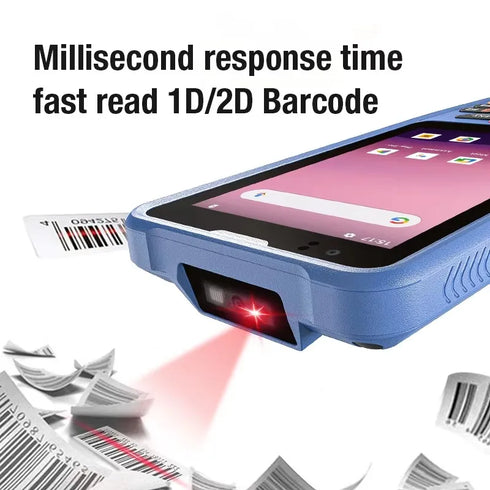

2D code
|
|
2D professional scanning module
|
|
Supports QR, PDF417, Mirco QR, RSS, Aztec, Maxincode, etc.
|
|
|
||||||
|
Interface
|
|
|
|
|
|
|
||||||
|
Type
|
|
Detail
|
|
Describe
|
|
|
||||||
|
TF card
|
|
Expand storage
|
|
Supports TF *1 max: 128G
|
|
|
||||||
|
SIM card
|
|
SIM
|
|
sim card slot *2
|
|
|
||||||
|
Type-C
|
|
data transmission
|
|
Type-C*1
|
|
|
||||||
|
Standard accessories
|
|
|
|
|
|
|
||||||
|
Type
|
|
Detail
|
|
Describe
|
|
|
||||||
|
TYPE-C
|
|
standard equipment
|
|
type-c data cable
|
|
|
||||||
|
Wrist band
|
|
standard equipment
|
|
Make the device easier to carry, convenient to use
and less likely to slip off |
|
|
||||||
|
Power Adapter
|
|
standard equipment
|
|
Input voltage 110~220v, supports PE 5.0V and 9.0V fast charging
|
|
|
||||||
|
Certified product
|
|
|
|
|
|
|
||||||
|
Type
|
|
Detail
|
|
Describe
|
|
|
||||||
|
Certification
System |
|
IP65
|
|
IP65 / explosion-proof certification
|
|
|
||||||
|
|
|
CE
|
|
confirmation
|
|
|
||||||
|
|
|
FCC
|
|
confirmation
|
|
|
||||||
|
|
|
Battery
|
|
UN38.3, MSDS, aviation and shipping reports, IEC62133
|
|
|
||||||
|
Reliability
|
|
|
|
|
|
|
||||||
|
Type
|
|
Detail
|
|
Describe
|
|
|
||||||
|
product
reliability |
|

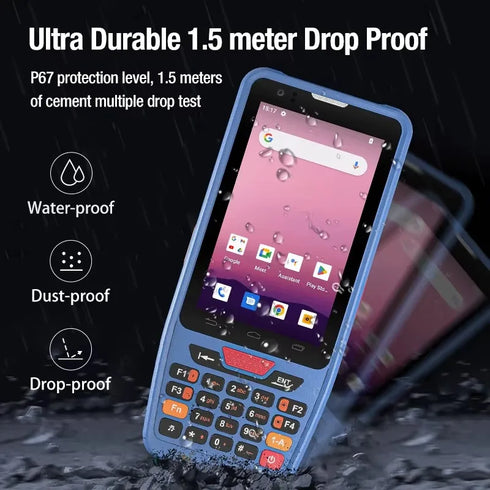

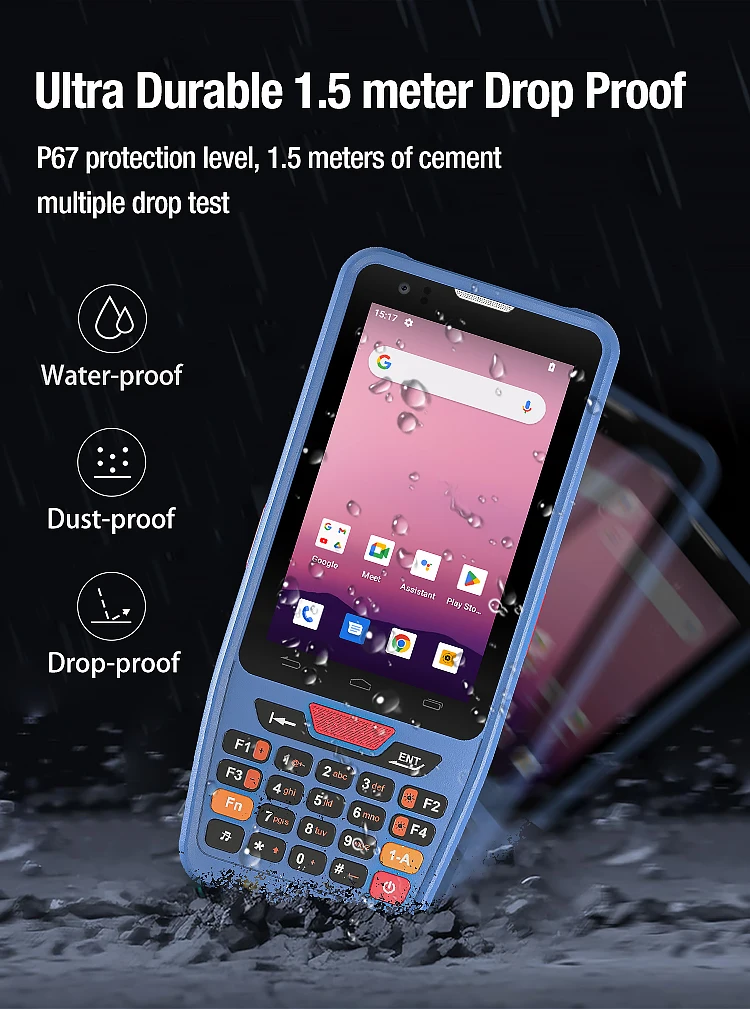

Drop height
|
|
1.5 meters drop resistance
|
|
|
||||||
|
|
|
Operating
temperature |
|
-20°C~50°C
|
|
|
||||||
|
|
|
storage
temperature |
|
-30°C~65°C
|
|
|
||||||
|
|
|
humidity
|
|
0%RH~95%RH (no condensation)
|
|
|
||||||
|
|
|
rolling test
|
|
Rolling continuously reaches 0.25 meters for 1000 times. The six contact surfaces still operate stably after rolling, reaching IEC
rolling specifications. |
|
|
||||||
|
|
|
Protection level
|
|
IP65 protection level
|
|
|
||||||
|
|
|
electrostatic
discharge |
|
±15kv air discharge, 8kv direct discharge
|
|
|
||||||
